Test imaginary census motifs against a null model — test_imaginary

Generates a null distribution of imaginary-census motif counts by repeatedly sampling CSS networks with sample_css_network() and compares the observed counts to this null distribution. Returns an S3 object of class "imaginarycss_test" with print, summary, and plot methods.

Usage

test_imaginary_census(graph, n_sim = 100L, alpha = 0.05, counter_type = 0L)

# S3 method for class 'imaginarycss_test'
print(x, ...)

# S3 method for class 'imaginarycss_test'
summary(object, ...)

# S3 method for class 'imaginarycss_test'
plot(x, main = "Motif Z-Scores vs Null", ...)

Arguments

graph: A barry_graph object.
n_sim: Integer. Number of null-model simulations (default 100).
alpha: Numeric. Significance level for the two-sided test (default 0.05).
counter_type: Integer passed to count_imaginary_census() (default 0L).
x: An object of class "imaginarycss_test".
...: Currently ignored.
object: An object of class "imaginarycss_test".
main: Character. Plot title.

Value

An object of class "imaginarycss_test", which is a list containing:

results: A data frame with columns motif, observed, null_mean, null_sd, z_score, p_value, and significant.
observed: Named numeric vector of observed motif totals.
null_matrix: Matrix of null motif totals (motifs x simulations).
n_sim: Number of simulations used.
alpha: Significance level used.

print.imaginarycss_test() returns the input object invisibly. Called for its side effect of printing a summary of significant motifs.

summary.imaginarycss_test() returns the input object invisibly. Called for its side effect of printing the full results table.

plot.imaginarycss_test() returns the input object invisibly. Called for its side effect of drawing a horizontal barplot of z-scores.

Examples

data(krackhardt_advice)
data(krackhardt_advice_perceptions)

n_people <- 21
advice_matrix <- matrix(0L, nrow = n_people, ncol = n_people)
advice_matrix[cbind(krackhardt_advice$from, krackhardt_advice$to)] <-
  krackhardt_advice$value

krack_graph <- new_barry_graph(
  c(list(advice_matrix), krackhardt_advice_perceptions)
)
res <- test_imaginary_census(krack_graph, n_sim = 50)
res
#> Imaginary-census significance test
#>   Simulations: 50  | Alpha: 0.05
#>
#> Significant motifs:
#>                            motif observed z_score p_value
#>                   Accurate null       992    7.05    0.00
#>  Partial false positive (assym)       412    6.08    0.00
#>   Partial false positive (null)       343   -5.44    0.00
#>                  Accurate assym      1052   -4.82    0.00
#>  Complete false positive (null)        30   -4.38    0.00
#>                     Mixed assym       173    4.23    0.00
#>  Partial false negative (assym)       463   -2.37    0.04
summary(res)
#> Imaginary-census significance test
#>   Simulations: 50  | Alpha: 0.05
#>   Motifs tested: 10 | Significant: 7
#>
#>                            motif observed null_mean null_sd z_score p_value
#>                   Accurate null       992     865.2   17.98    7.05    0.00
#>  Partial false positive (assym)       412     300.1   18.41    6.08    0.00
#>   Partial false positive (null)       343     439.4   17.71   -5.44    0.00
#>                  Accurate assym      1052    1167.1   23.90   -4.82    0.00
#>  Complete false positive (null)        30      60.4    6.94   -4.38    0.00
#>                     Mixed assym       173     126.7   10.96    4.23    0.00
#>  Partial false negative (assym)       463     506.1   18.24   -2.37    0.04
#>  Complete false negative (full)        81      84.9    9.24   -0.42    0.76
#>   Partial false negative (full)       395     392.5   12.74    0.19    0.80
#>                   Accurate full       469     467.5   15.34    0.10    0.96
#>  significant
#>         TRUE
#>         TRUE
#>         TRUE
#>         TRUE
#>         TRUE
#>         TRUE
#>         TRUE
#>        FALSE
#>        FALSE
#>        FALSE

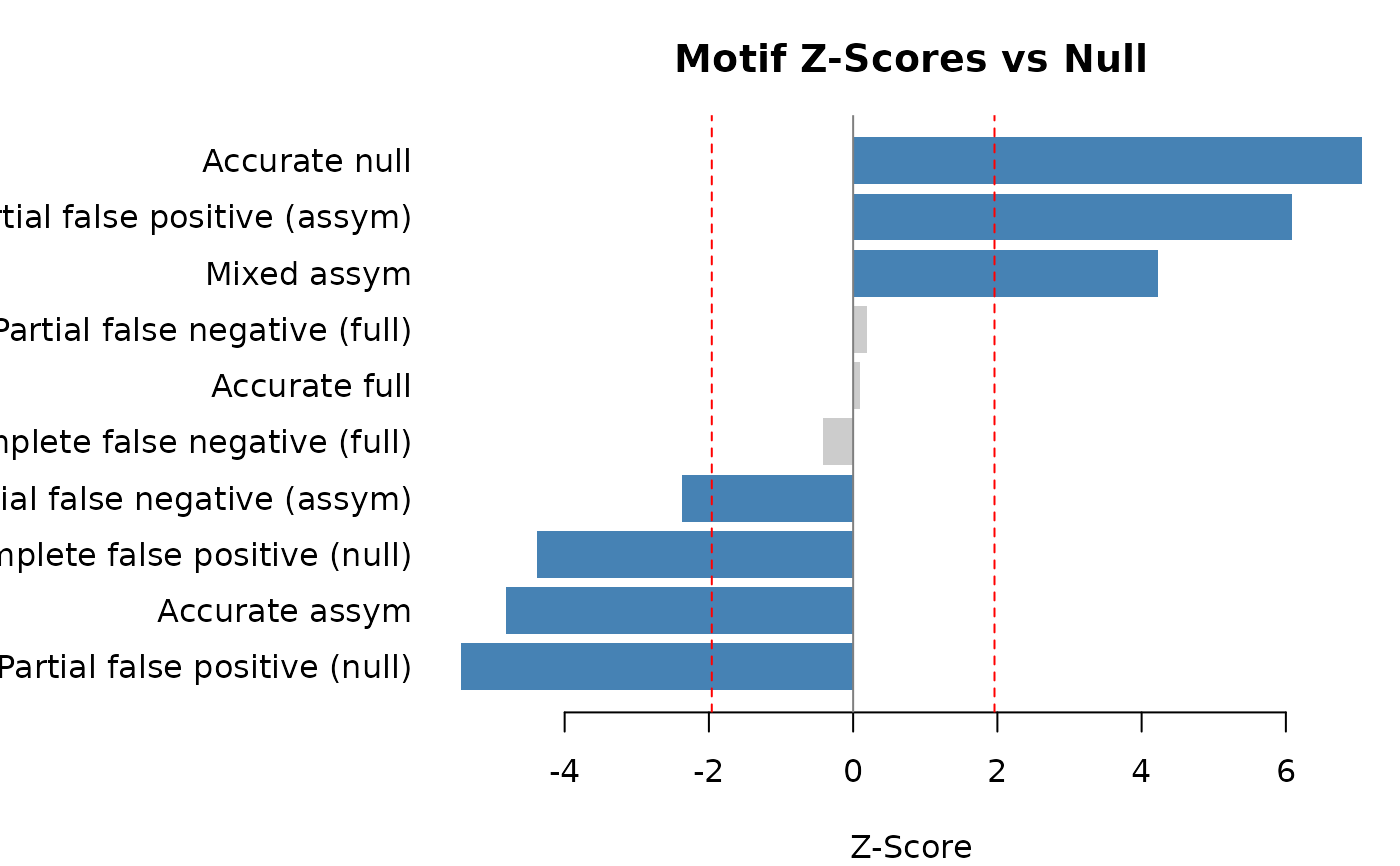

plot(res)
